Solar Charge Controllers / Regulators 10A | 30A | 50A

Description

Solar Charge Controllers / Regulators 30A | 50A

ex demo – as new condition

Instruction Manual PDF

Product Information PDF

10A PWM –

• Performance category PWM
• Max solar input voltage 50V
• Max in solar input power  150W – 300W
• System voltage 12V / 24V
• Display 3 LEDS to display operation and faults
• USB output 5 V / 2.4 A
• Load output 10A max
• Dimension 125 x 81 x 30 mm
• Weight 160 g

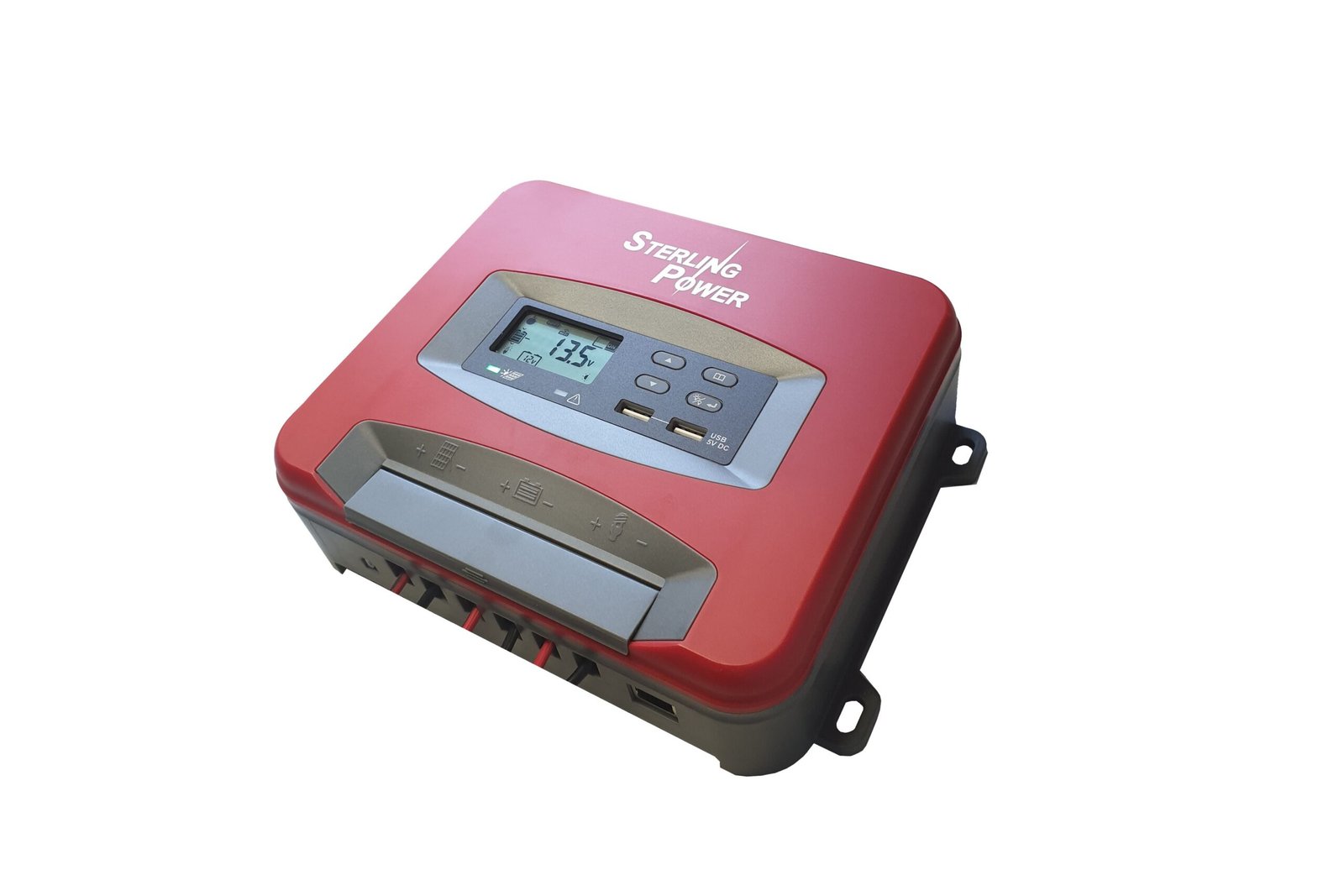

30A MPPT –

• Performance category MPPT
• Max in solar input power  360W – 800W+
• Max solar input voltage 100V
• System voltage 12V / 24V auto detect
• Display and information LCD panel
• USB output 5V / 2.4A
• Load output 30A max
• Operation Wi Fi
• Dimension 238 x 177 x 63 mm
• Weight 1.5kg

50A MPPT –

• Performance category MPPT
• Max in solar input power  600W – 1200W
• Max solar input voltage 135V
• System voltage 12 V / 24 / 36 / 48V
• Display and information LCD panel
• USB output 5 V / 2.4A
• Load output 50A max
• Operation Wi Fi
• Dimension 238 x 177 x 73 mm
• Weight 2.3kg
