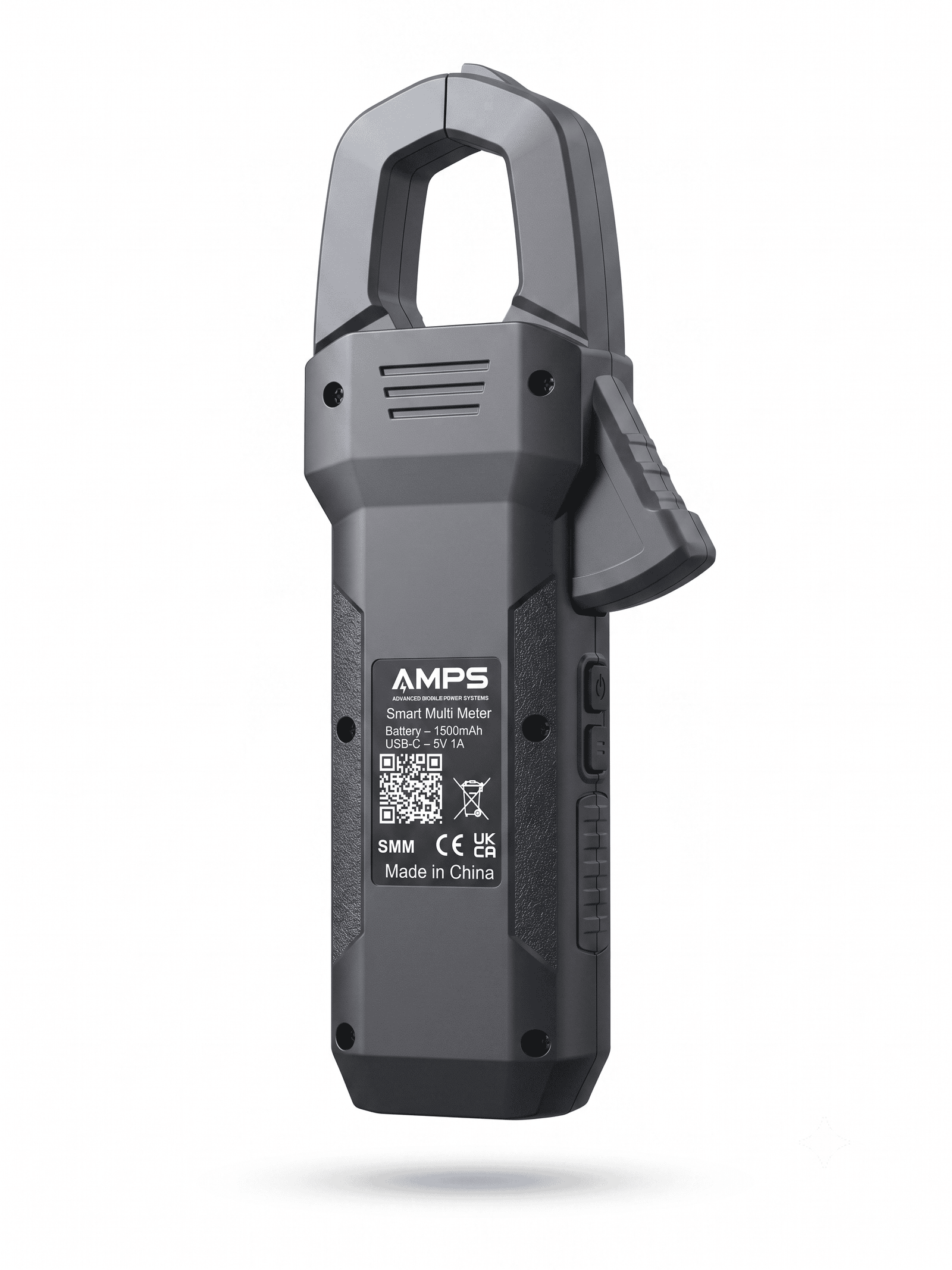

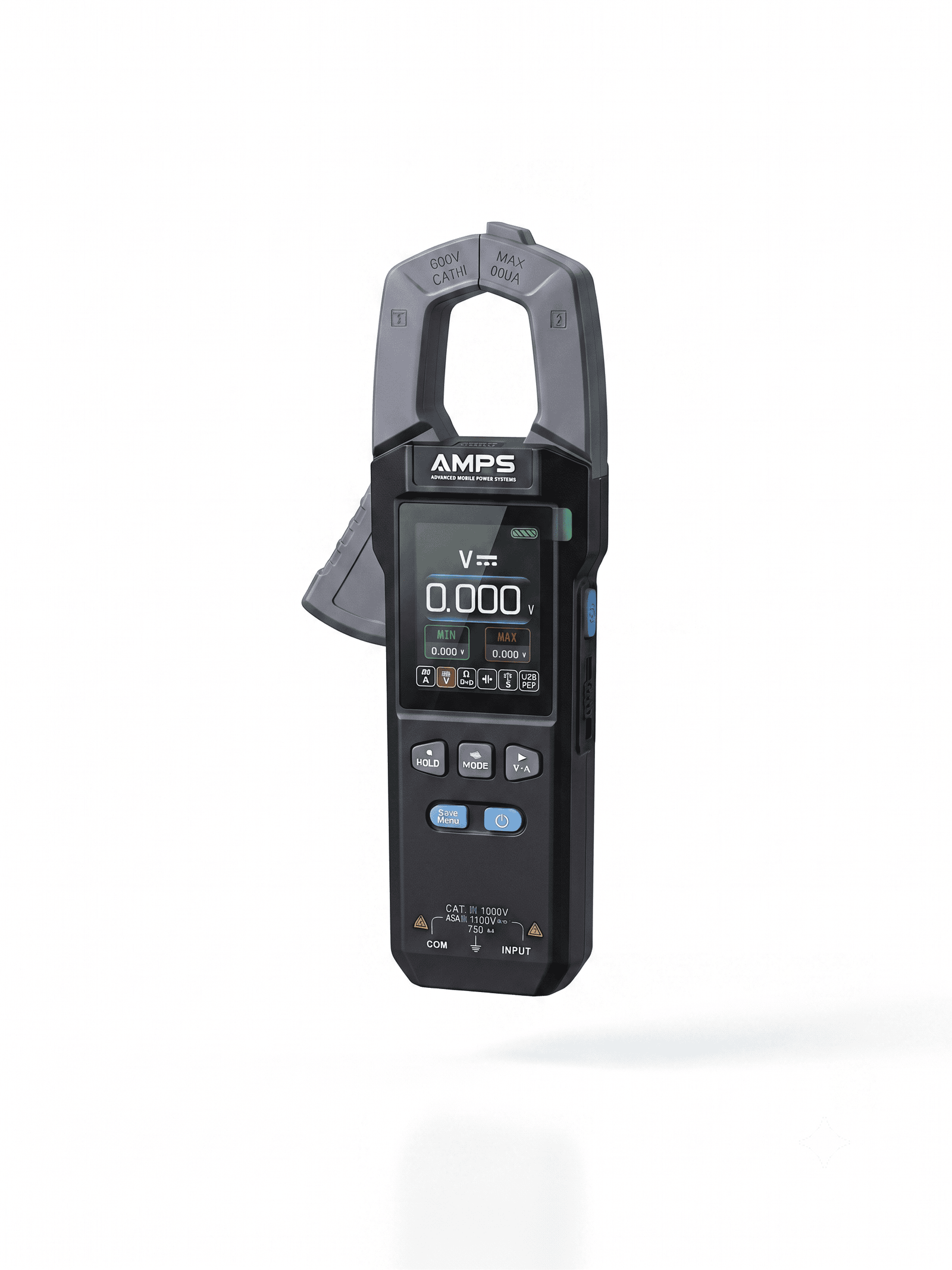

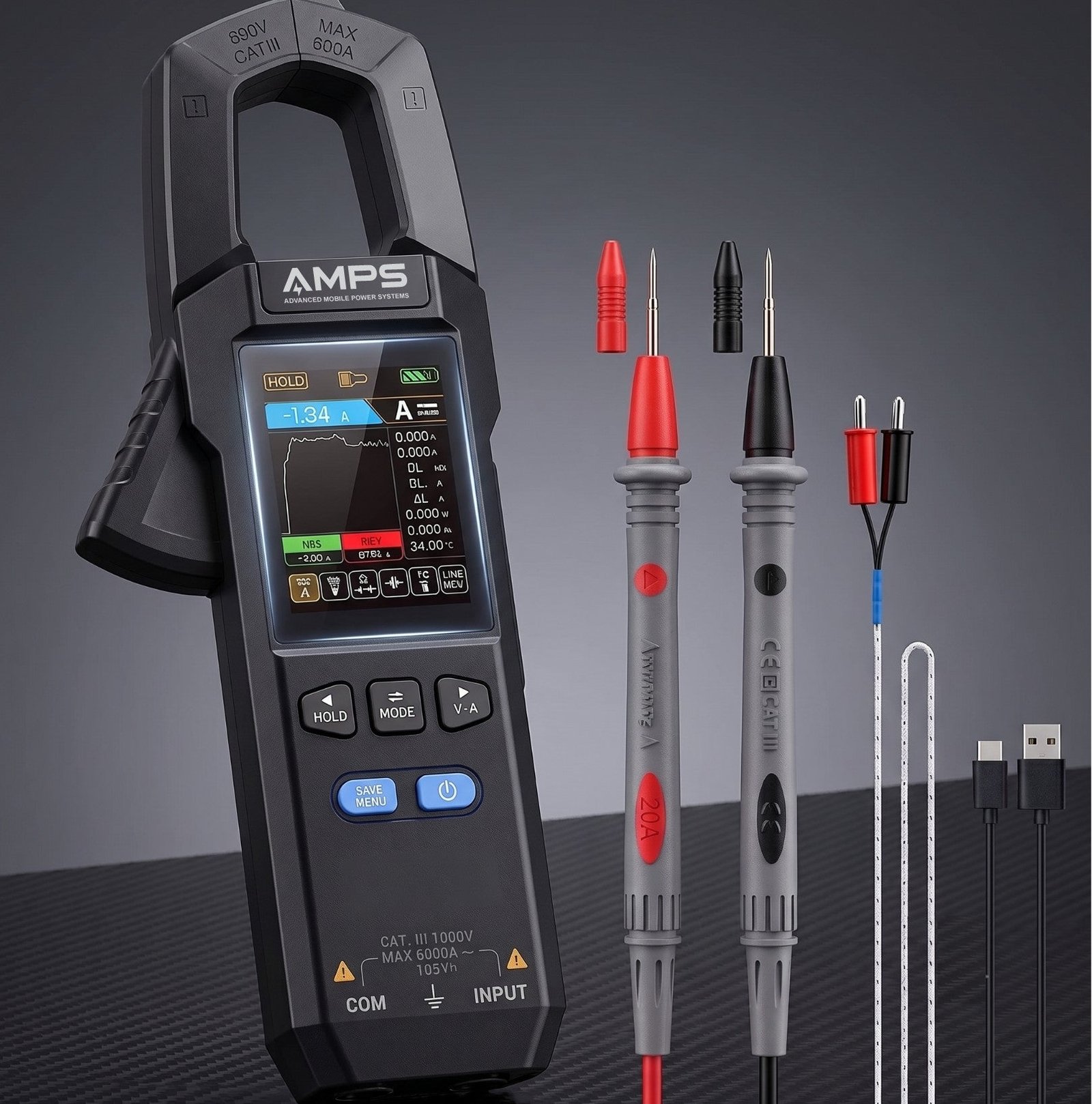

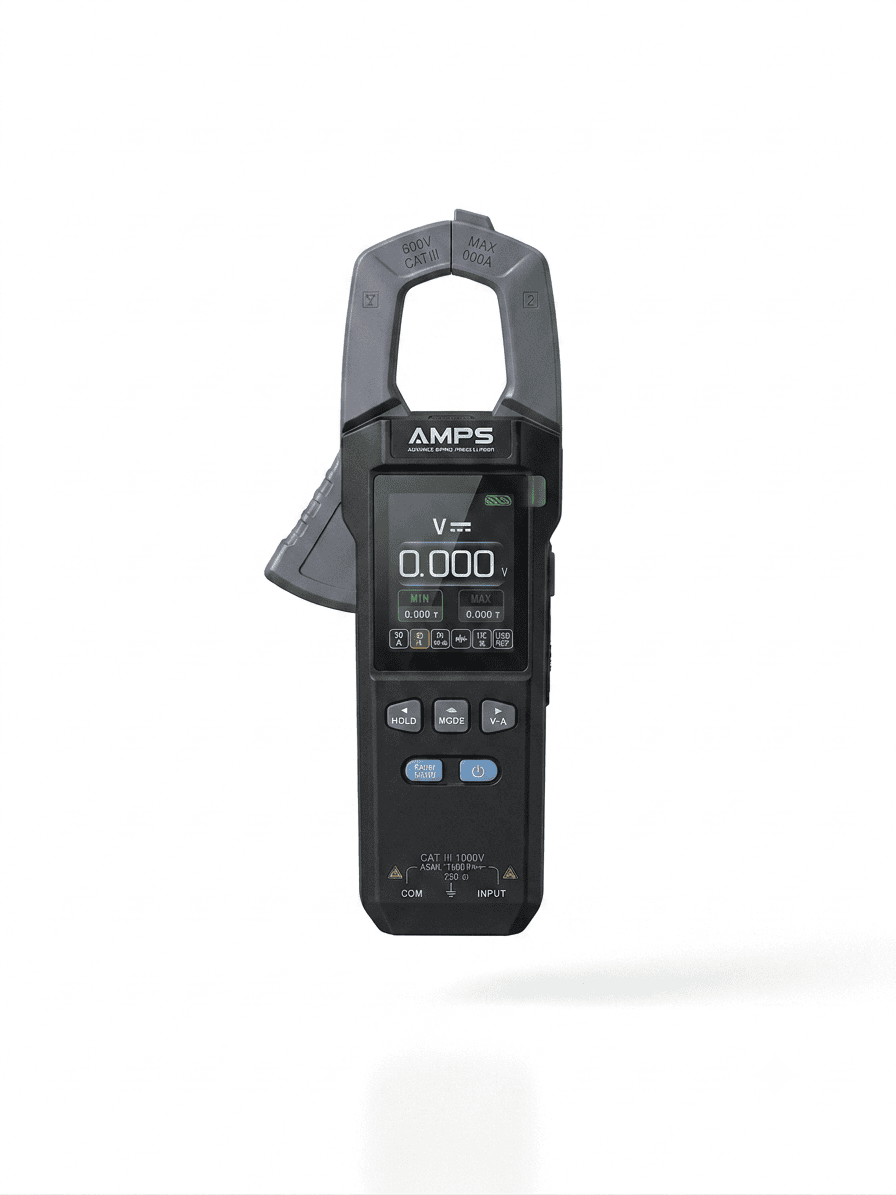

Smart Multi Meter | Voltmeter Clampmeter | USB-C charge
Smart Multi Meter | Voltmeter Clampmeter | USB-C charge - Image 2
Smart Multi Meter | Voltmeter Clampmeter | USB-C charge - Image 3
Smart Multi Meter | Voltmeter Clampmeter | USB-C charge - Image 4
Smart Multi Meter | Voltmeter Clampmeter | USB-C charge - Image 5

Smart Multi Meter | Voltmeter Clampmeter | USB-C charge

245.00 د.إ, excl. 5% VAT

Technical Datasheet: AMPS SMM 1. General Specifications Feature Specification Model SMM Display Counts 10,000 counts Display Type 2.0-inch TFT Color Display (240 × 320 px) Measurement Modes General Mode, Waveform Display Mode, Power Mode Jaw Opening Size 25 mm maximum Power Source Built-in 3.7 V, 1500 mAh Lithium Polymer battery Charging Interface USB Type-C (5 V / 1 A) Data Storage Up to 30 sets of historical data Dimensions & Weight 193 × 74 × 32 mm | ~194 g 2. Technical Ranges & Accur

Browse a list

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: smart-multi-meter-voltmeter-clampmeter-default Category: Tag:

Description

 Technical Datasheet: AMPS SMM

1. General Specifications

FeatureSpecification
ModelSMM
Display Counts10,000 counts
Display Type2.0-inch TFT Color Display (240 × 320 px)
Measurement ModesGeneral Mode, Waveform Display Mode, Power Mode
Jaw Opening Size25 mm maximum
Power SourceBuilt-in 3.7 V, 1500 mAh Lithium Polymer battery
Charging InterfaceUSB Type-C (5 V / 1 A)
Data StorageUp to 30 sets of historical data
Dimensions & Weight193 × 74 × 32 mm | ~194 g

2. Technical Ranges & Accuracy

Measurement FunctionRangeBasic Accuracy
DC Voltage9.999 V / 99.99 V / 999.9 V±(0.5% + 3)
AC Voltage9.999 V / 99.99 V / 750.0 V±(1.0% + 3)
AC / DC Current99.99 A / 600.0 A±(2.5% + 10)
Resistance999.9 Ω to 99.99 MΩ±(1.5% + 3)
Capacitance9.999 nF to 99.99 mF±(2.0% + 5) to ±(5.0% + 20)
Frequency9.999 Hz to 9.999 MHzHigh Precision
Temperature-55 °C to +1300 °C (-67 °F to +2372 °F)Thermocouple-dependent

3. Key Functions & Features

  • True RMS: Ensures accurate measurement on non-sinusoidal AC signals.

  • Waveform Trend Graphing: Real-time data curve display over time.

  • Power Mode: Simultaneous display of voltage and current to calculate power output.

  • Non-Contact Voltage (NCV): Detects AC voltage safely through the clamp head.

  • Live Wire Detection: Single-probe zero/fire wire identification.

  • Utilities: Integrated LED flashlight, 10-level adjustable screen brightness, Auto Power-Off (APO), and firmware update support via USB-C.

Additional information

Weight0.7 kg
