RB48100

Description

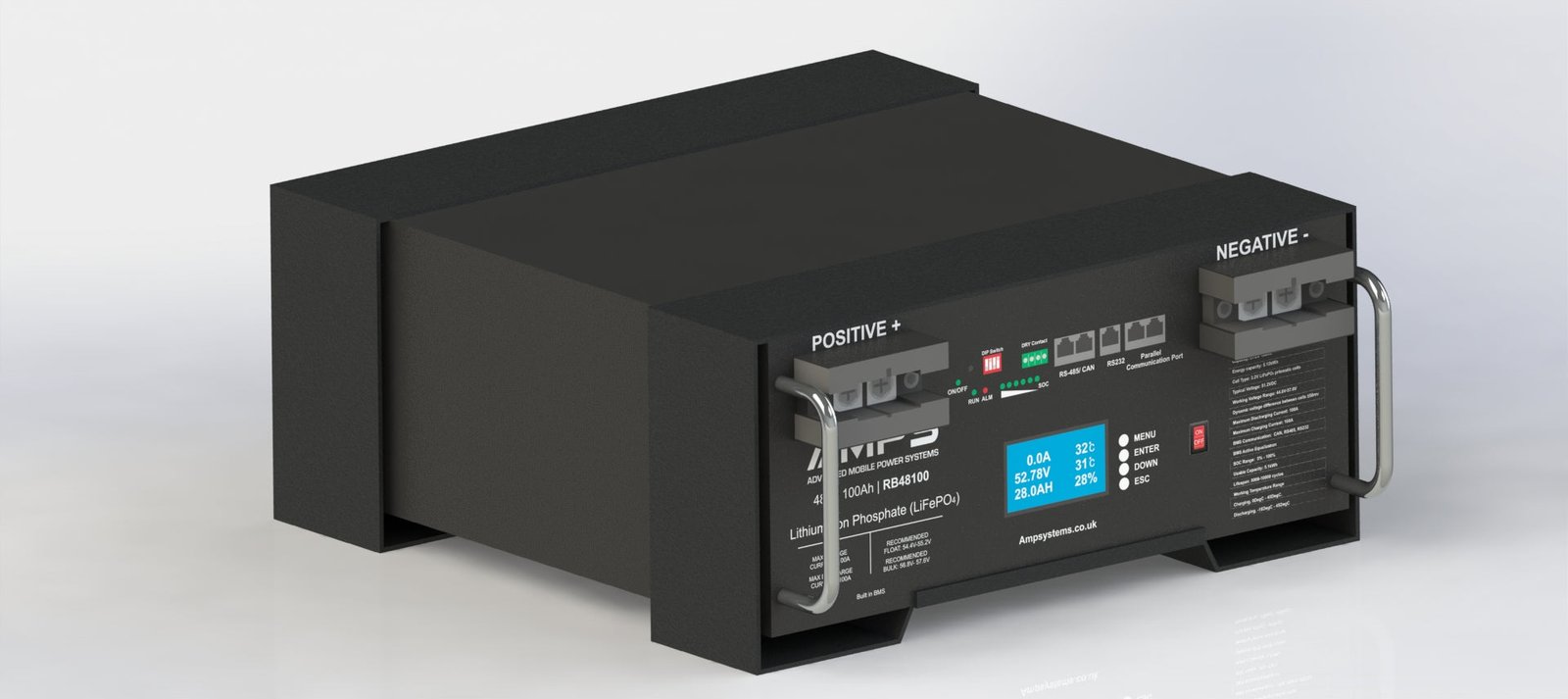

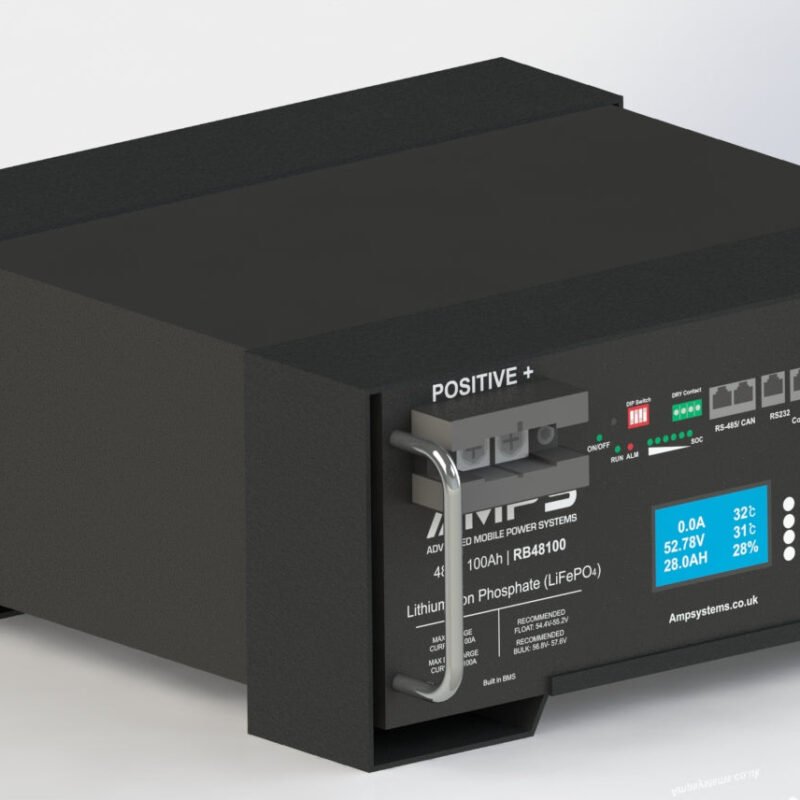

RB48100 | RB48150 – 48V 100Ah | 150Ah Stack Batteries

4U Height (19 Inch Rack Format)

400W heater built in

• Product AMPS Part number: RB48100 | RB48150
• Lithium Iron Phosphate – LiFePO4
• Capacity: 51.2V 100Ah | 51.2V 150Ah
• JBD UP16S010-L16S-100A BMS |  JBD UP16S010-L16S-200A BMS
• Energy capacity: 5.12kWh | 7.68kWh
• Cell Type: 3.2V LiFePO4 prismatic cells
• Typical Voltage: 51.2VDC
• Working Voltage Range: 44.8V-57.6V
• Dynamic voltage difference between cells ≤50mv
• Maximum Discharging Current: 100A | 200A
• Maximum Charging Current: 100A | 200A
• BMS Communication:  CAN, RS485, RS232
• BMS Active Equalization
• SOC Range:  5% – 100%
• Useable Capacity: 5.12kWh | 7.68kWh
• Lifespan: 8000-10000 cycles
• Working Temperature Range
• Charging, 0DegC – 45DegC.
• Discharging, -10DegC – 45DegC
• 455mm x 435mm x 180mm (view gallery images for more specific dimensions)
• Weight: 50kg (RB48100) – 73kg (RB48150)
• Both RB48100 and RB48150 are idenitical in dimensions, looks and functionality.
• The differences are purely in capacity and weight

instructions
