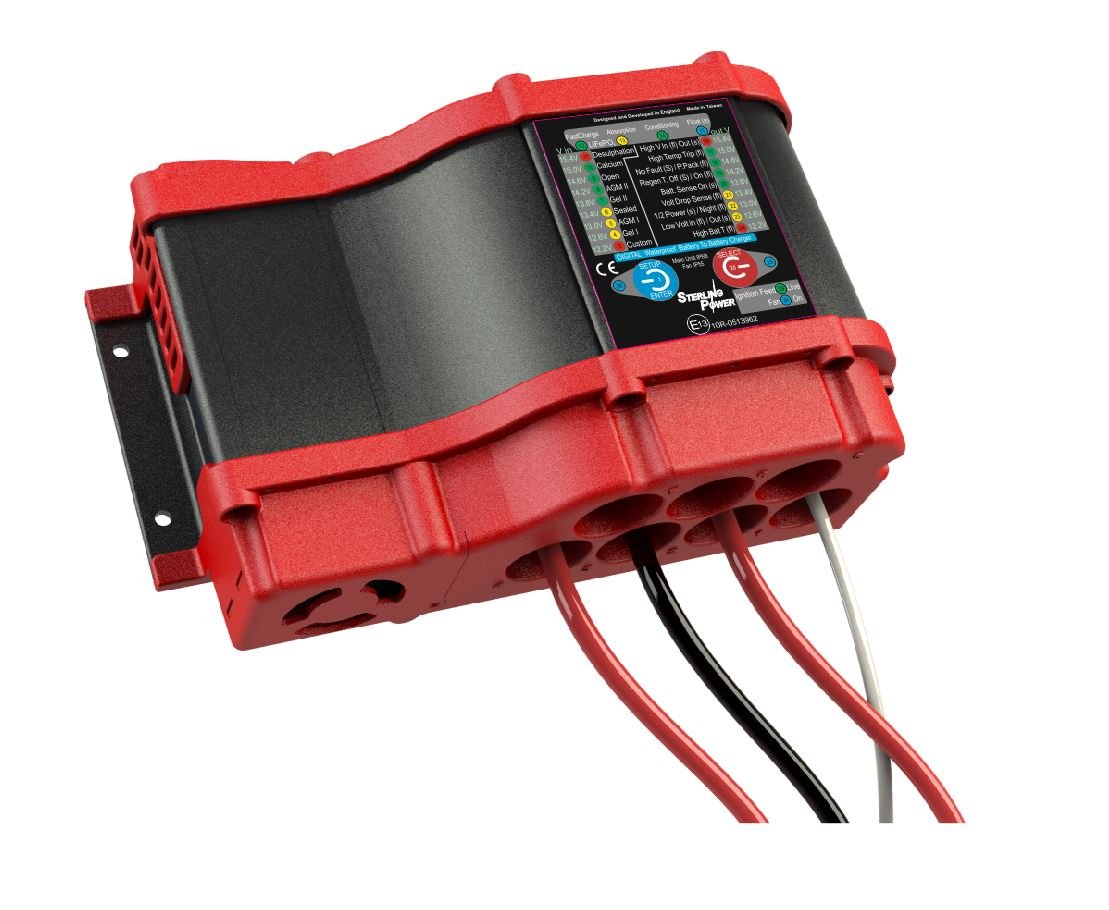

Pro Batt Waterproof BBW series

Pro Batt Waterproof BBW series

2,400.00 د.إ, excl. 5% VAT

Instruction Manual PDF Product Information PDF DC Voltage DC output input current (A) Size L x W x D mm Weight Kg Part Number 12 12 30 128 x 238 x 94 3.5 BBW1230 12 24 30 128 x 238 x 94 3.5 BBW122430 24 12 15 128 x 238 x 94 3.5 BBW241215 24 24 15 128 x 238 x 94 3.5 BBW242415 12 36 30 128 x 238 x 94 3.5 BBW123630 12 48 30 128 x 238 x 94 3.5 BBW124830 24 48 15 128 x 238 x 94 3.5 BBW244815 BBW1270 BBW1270 Input voltage range 9V-16V Continuous Rated output power 64A at 14.51V ~930W Continuous Rated

Browse a list

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: pro-batt-waterproof-bbw-series-parent Category: Tags: ,

Description

Instruction Manual PDF

Product Information PDF


DC Voltage

DC output
input current (A)
Size L x W x D mmWeight KgPart Number
121230128 x 238 x 943.5BBW1230
122430128 x 238 x 943.5BBW122430
241215128 x 238 x 943.5BBW241215
242415128 x 238 x 943.5BBW242415
123630128 x 238 x 943.5BBW123630
124830128 x 238 x 943.5BBW124830
244815128 x 238 x 94

3.5

BBW244815



BBW1270

BBW1270
Input voltage range                9V-16V
Continuous Rated output power        64A at 14.51V ~930W
Continuous Rated input power   71.75A at 13.61V ~976W
Quiescent current            5mA
Efficiency rating            95-98%

Self recovering protections:    under voltage protection
                input over voltage protection
                output over voltage protection
                over current protection
                charge over temperature

Operational Temperature        -20 Deg C -> 60 DegC

Approval             CE | UKCA
                E-Marking 24*10R06/01*3789*00
Cooling method            Thermostatically Controlled
                Variable low speed fan

Dimensions            200mm x 130mm x 56mm
Weight                2.5Kg



Instructions / Information pack BB1270

Additional information

WeightN/A
Power Variant

BBW122430 (12V – 24V) 30A input, BBW1230 (12V – 12V) 30A input, BBW123630 (12V – 36V) 30A input, BBW124830 (12V – 48V) 30A input, BBW1270 (12V to 12V) 70A – BB1270 Chassis (waterproof), BBW241215 (24V – 12V) 15A input, BBW242415 (24V – 24V) 15A input, BBW244815 (24V – 48V) 15A input
