Description
Induction Hobs
Induction hobs require Pure Sine Wave inverters to operate – we recommend
Instructions in German (IH1 and IH1L)
Instructions in German (IH2)
Instructions in German (IH2L)
|
|
|
|
IHP – Portable Induction Hob
IHP
Portable and Storable – great for hiding away in a drawer and putting on surface only when required. Induction Hob: Part No: IHP (induction hob portable)
Voltage 230VAC | 50Hz
1500W maximum power
Variable power consumption | 8 settings 200W-1500W – ideal for inverter use
A-Grade Black Crystal Plate Ø260mm
Double layered coil heating.
Housing Material: PP+ABS.
Product Size:282mm x 311mm x72mm
Intelligent Cooking Functions
Power Indication on display
Over Heat + Voltage + Current Protection
Auto shut off in 1 minute without induction pan.
1.5m of AC cable with British Standard BS Plug
CE, EMC, ROHS approval | IH1 – Fixed install single induction hob

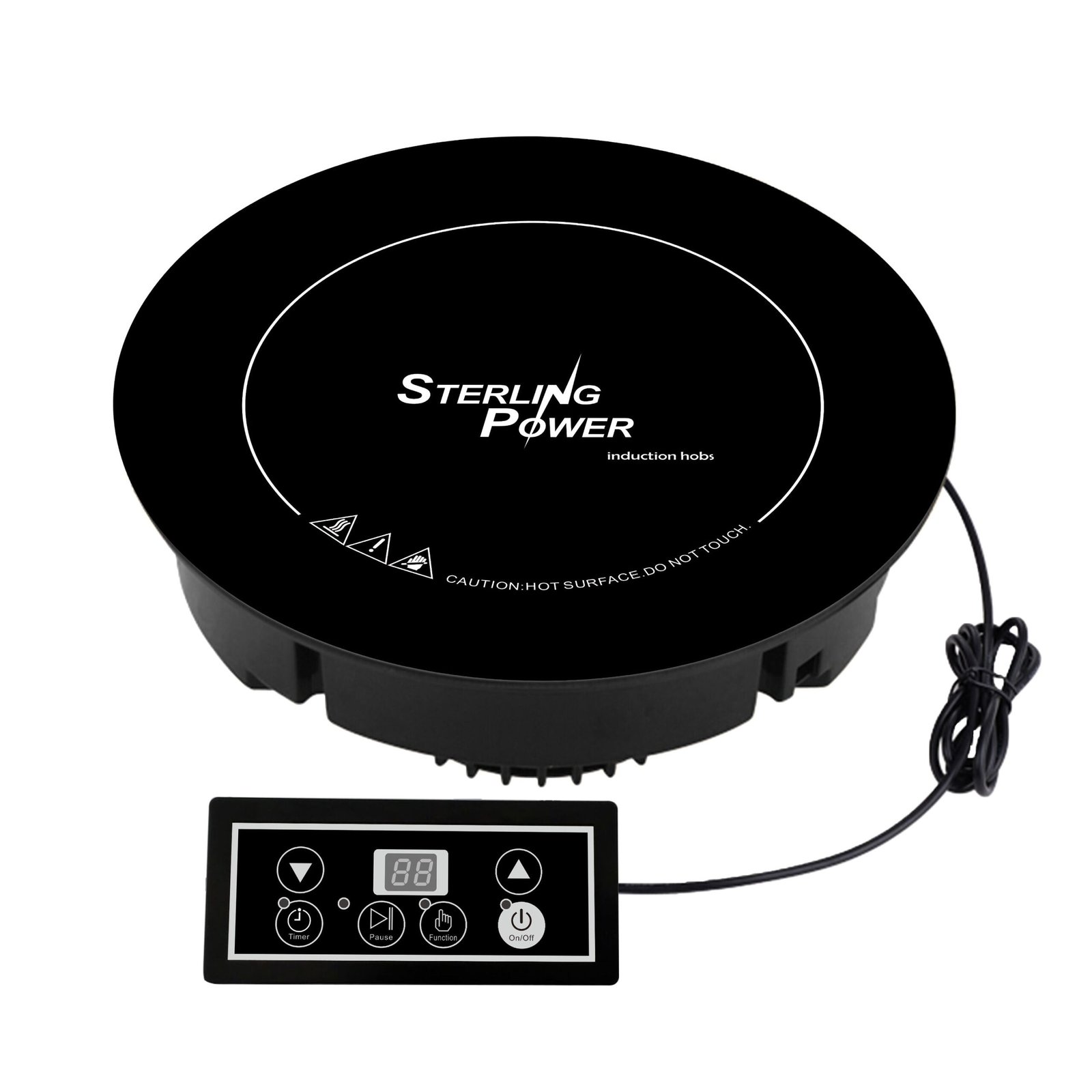

IH1 (built in)
Single induction hob designed for a fixed install on counter surface. User’s apply changes to the settings with the remote control (included). Induction Hob: Part No: IH1 (induction hob single fixed install / built in)
Voltage 230VAC | 50Hz
1800W maximum power or IH1500 (1500W max)
Variable power consumption | 8 settings 200W-1800W – ideal for inverter use
A-Grade Black Crystal Plate Ø260mm
Coil heating
Housing Material: PP.
Product Size:288mm x 82mm
Intelligent Cooking Functions
Power Indication on display
Over Heat + Voltage + Current Protection
Auto shut off in 1 minute without induction pan.
1.5m of AC cable with British Standard BS Plug
CE, EMC, ROHS approval |
IHFB – Front and Back Twin
IHFB (built in)
Twin induction hob, front and back, designed for a fixed install on counter surface. User’s apply changes to the settings on the surface itself. Induction Hob: Part No: IHFB (Front and Back / Built in)
Voltage 230VAC | 50Hz
2800W maximum power w/ power share
Front 1200W Maximum
Rear 1800W Maximum
Zinc alloy plated bottom
A-Grade Black Crystal Plate
Built in size 495mm x 265mm
Coil heating
Intelligent Cooking Functions
Power Indication on display
Over Heat + Voltage + Current Protection
Auto shut off in 1 minute without induction pan.
1.5m of AC cable with British Standard BS Plug
CE, EMC, ROHS approval
| IHSBS – Side by Side Twin
IHSBS (built in)
Twin induction hob, side by side, designed for a fixed install on counter surface. User’s apply changes to the settings on the surface itself. Induction Hob: Part No: IHSBS (Side By Side)
Voltage 230VAC | 50Hz
2800W maximum power w/ power share
Left 1800W Maximum
Right 1800W Maximum
Zinc alloy plated bottom
A-Grade Black Crystal Plate
Built in size 365mm x 575mm
Coil heating
Intelligent Cooking Functions
Power Indication on display
Over Heat + Voltage + Current Protection
Auto shut off in 1 minute without induction pan.
1.5m of AC cable with British Standard BS Plug
CE, EMC, ROHS approval |
| IH1L – Fixed install single induction hob
IH1L (built in)
Single induction hob designed for a fixed install on counter surface. User’s apply changes to the settings with the remote control (included). Induction Hob: Part No: IH1L (induction hob single fixed install / built in)
Voltage 230VAC | 50Hz
1000W maximum power
Variable power consumption | 8 settings 200W-1000W – ideal for inverter use
A-Grade Black Crystal Plate Ø195mm
Coil heating
Housing Material: PP.
Product Size:195mm x 82mm
Intelligent Cooking Functions
Power Indication on display
Over Heat + Voltage + Current Protection
Auto shut off in 1 minute without induction pan.
1.5m of AC cable with Schuko Plug + UK adaptor
CE, EMC, ROHS approval |
| IH2 – Fixed install single induction hob IH2 (built in)
Single induction hob designed for a fixed install on counter surface. User’s apply changes to the settings with the remote control (included). Induction Hob: Part No: IH2 (induction hob single fixed install / built in)
Voltage 230VAC | 50Hz
2000W maximum power
Variable power consumption | 8 settings 600W-2000W – ideal for inverter use
A-Grade Black Crystal Plate Ø195mm
Coil heating
Housing Material: PP.
Product Size:390mm x 300mm 3.45kg
Intelligent Cooking Functions
Power Indication on display
Over Heat + Voltage + Current Protection
Auto shut off in 1 minute without induction pan.
1.5m of AC cable with Schuko Plug + UK adaptor
CE, EMC, ROHS approval |
| IH2L – Fixed install single induction hob IH2L (built in)
Single induction hob designed for a fixed install on counter surface. User’s apply changes to the settings with the remote control (included). Induction Hob: Part No: IH2L (induction hob single fixed install / built in)
Voltage 230VAC | 50Hz
1000W maximum power
Variable power consumption | 8 settings 200W-1000W – ideal for inverter use
A-Grade Black Crystal Plate Ø195mm
Coil heating
Housing Material: PP.
Product Size: 250mm x 210mm at 1.35kg Intelligent Cooking Functions
Power Indication on display
Over Heat + Voltage + Current Protection
Auto shut off in 1 minute without induction pan.
1.5m of AC cable with Schuko Plug + UK adaptor
CE, EMC, ROHS approval |
Fitting Dimensions
IH1
IHFB
IHSBS
IH1L
IH2
IH2L
