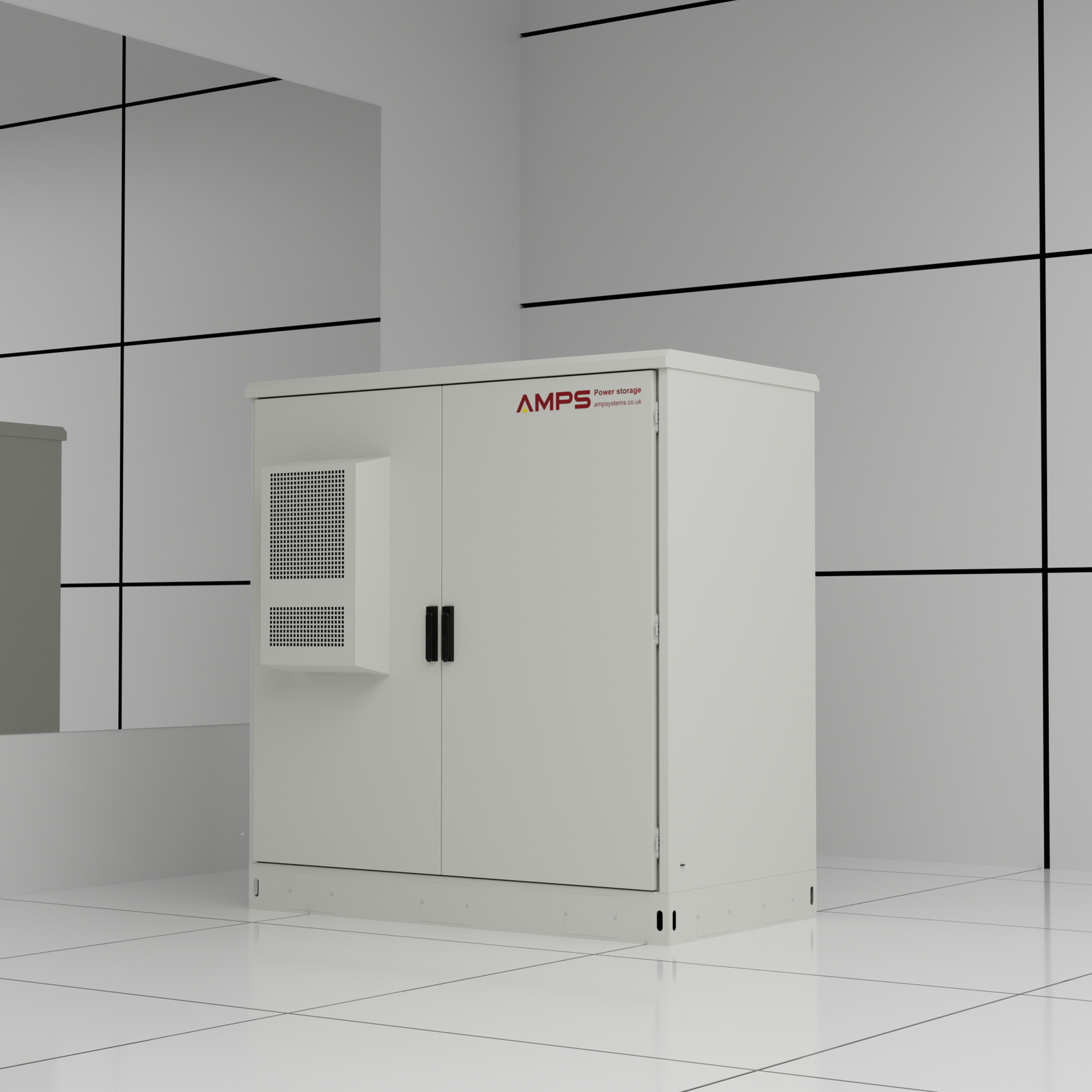

EC30U

Description

EC30U

CABINET FOOTPRINT (mm): 1500 x 800

CABINET LID FOOTPRINT (mm): 1508 x 840

TOTAL HEIGHT (mm): 1600

RACK ACCESS WIDTH (mm): 600

AIR CONDITIONING PROTRUSION (mm): 155

ACCESS HEIGHT (mm): 1320

NET MASS (kg): 290

GROSS MASS (kg): 305

ECT Cabinet tray dimensions (mm): 400 x 475

General specs:

1. Outer steel plate: 1.5 mm galvanised steel

2. Inner steel plate: 0.8 mm cold-rolled steel

3. Insulation: 20 mm EPS

4. Internal columns (rack): 2.0 mm steel

5. Front and rear doors (opening angle: 105°)

6. Wind-door lock to hold the door open (all doors)

7. Main door locks supplied with 2 keys per lock

Internal electrics
8) Air conditioning: 300 W input, approx. 600 W cooling / 500 W heating
9) 2 × internal light fittings, micro-switch activated on door opening

Extras
10) Battery tray: 475 mm wide, 400 mm deep, 10 mm lip on both sides; 1.5 mm galvanised steel

Note
“U” measurement in telecom/IT refers to a “rack unit” (RU), the standard unit of vertical height for equipment mounted in a 19-inch rack system.
