Conventional Ignition Fed Relays

Price on request

120A – 200A relays (12V or 24V) where cost is the overriding factor then simply fit a relay with a direct ignition feed, no frills. Part Number R12120 R24120 R12200 R24200 Coil nominal V 12 24 12 24 Contact current rating A 120 120 200 200 Active switching current A 120 120 200 200 Active switching power W 1400 1400 2800 2800 Coil rating continuous W 2.4 2.4 2.4 2.4 Ignition Voltage required 8.0V – 15.5V | 16.0V – 31.0V | 8.0V – 15.5V | 16.0V – 31.0V Ambient rating deg C -40 – + 85 Relative humi

GUARANTEED SAFE CHECKOUT

Description

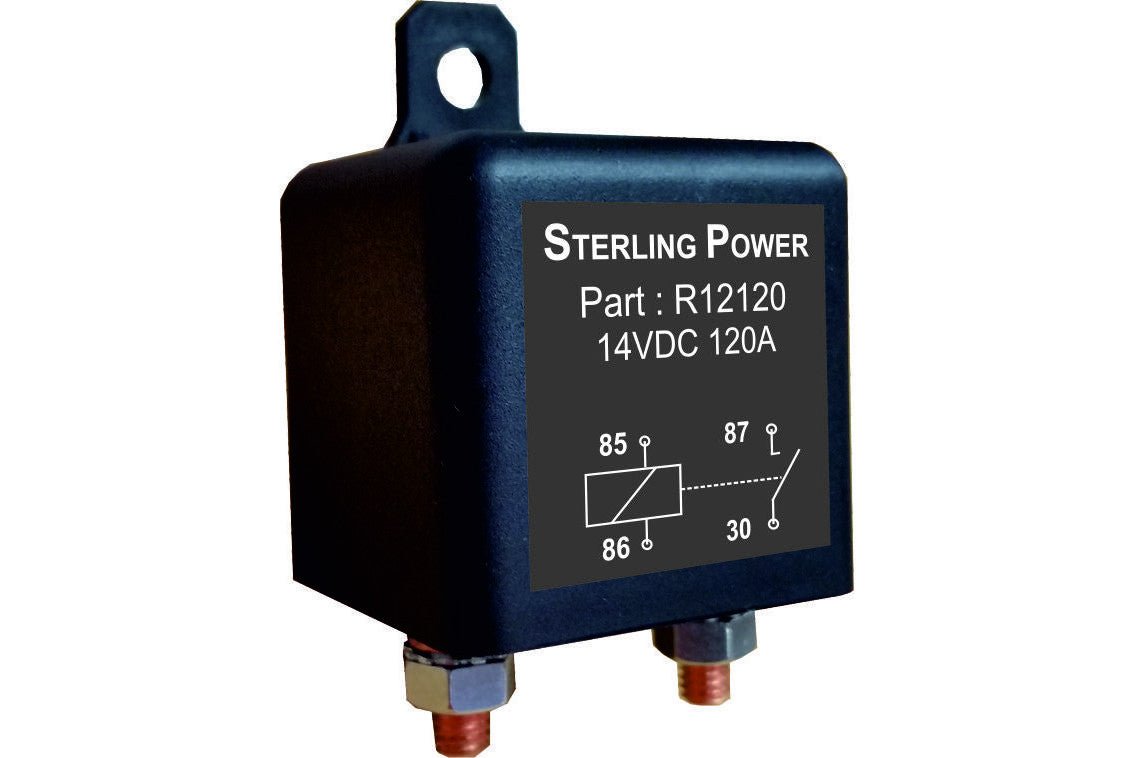

120A – 200A relays (12V or 24V)

where cost is the overriding factor then simply fit a relay with a direct ignition feed, no frills.

Part Number                            R12120           R24120   R12200          R24200
Coil nominal V                              12                   24                     12                  24
Contact current rating A              120                 120                   200                200
Active switching current A           120                 120                   200                200
Active switching power W         1400               1400                 2800              2800
Coil rating continuous W             2.4                  2.4                    2.4                 2.4

Ignition Voltage required       8.0V – 15.5V | 16.0V – 31.0V | 8.0V – 15.5V | 16.0V – 31.0V
Ambient rating deg C                                               -40 – + 85
Relative humidity                                                 85% at 40 deg C
weight                                                               90 grams
