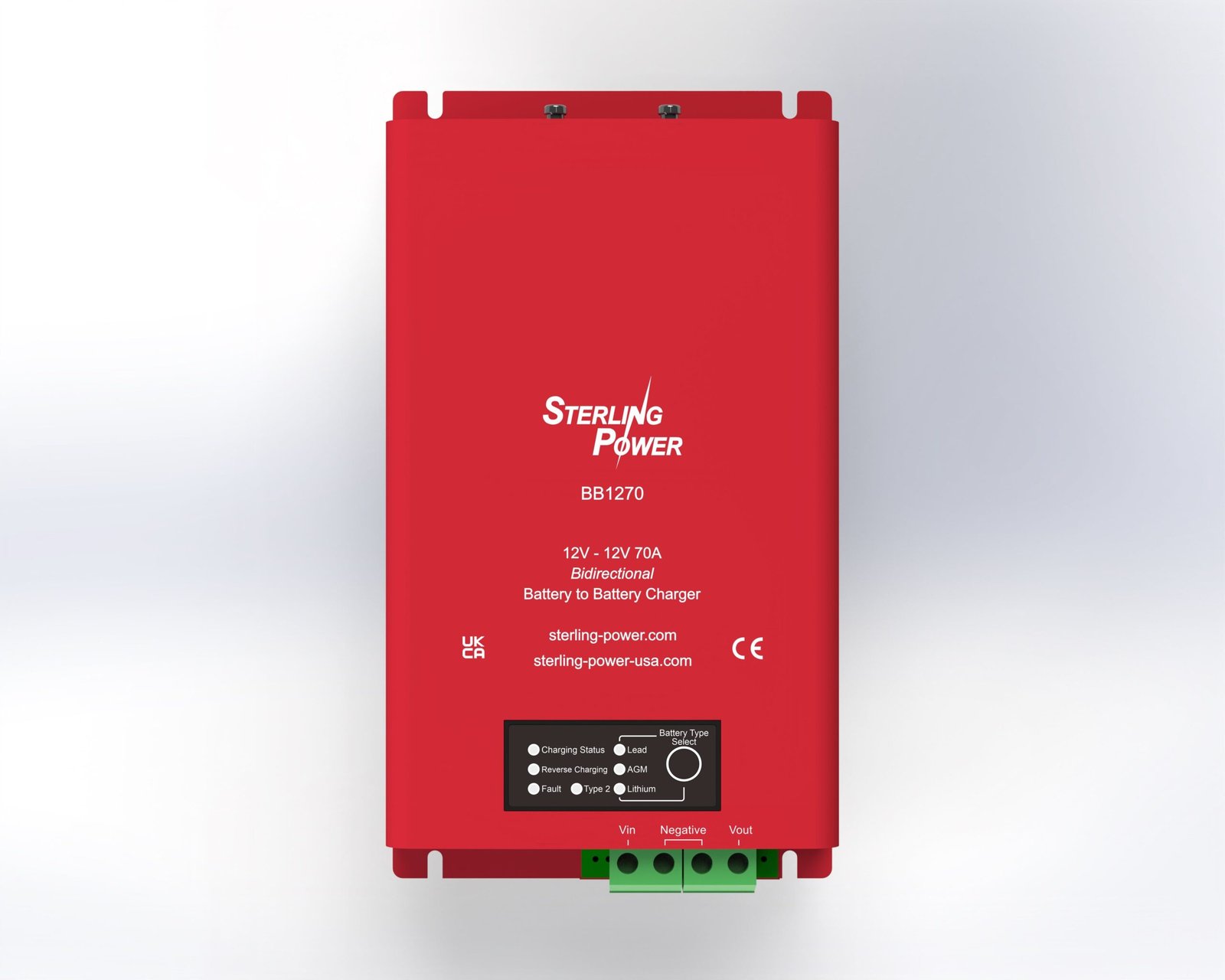

BB1270

Description

12V to 12V DC to DC Chargers 10A | 15A | 20A | 25A | 40A | 70A | 120A models – E-Marking

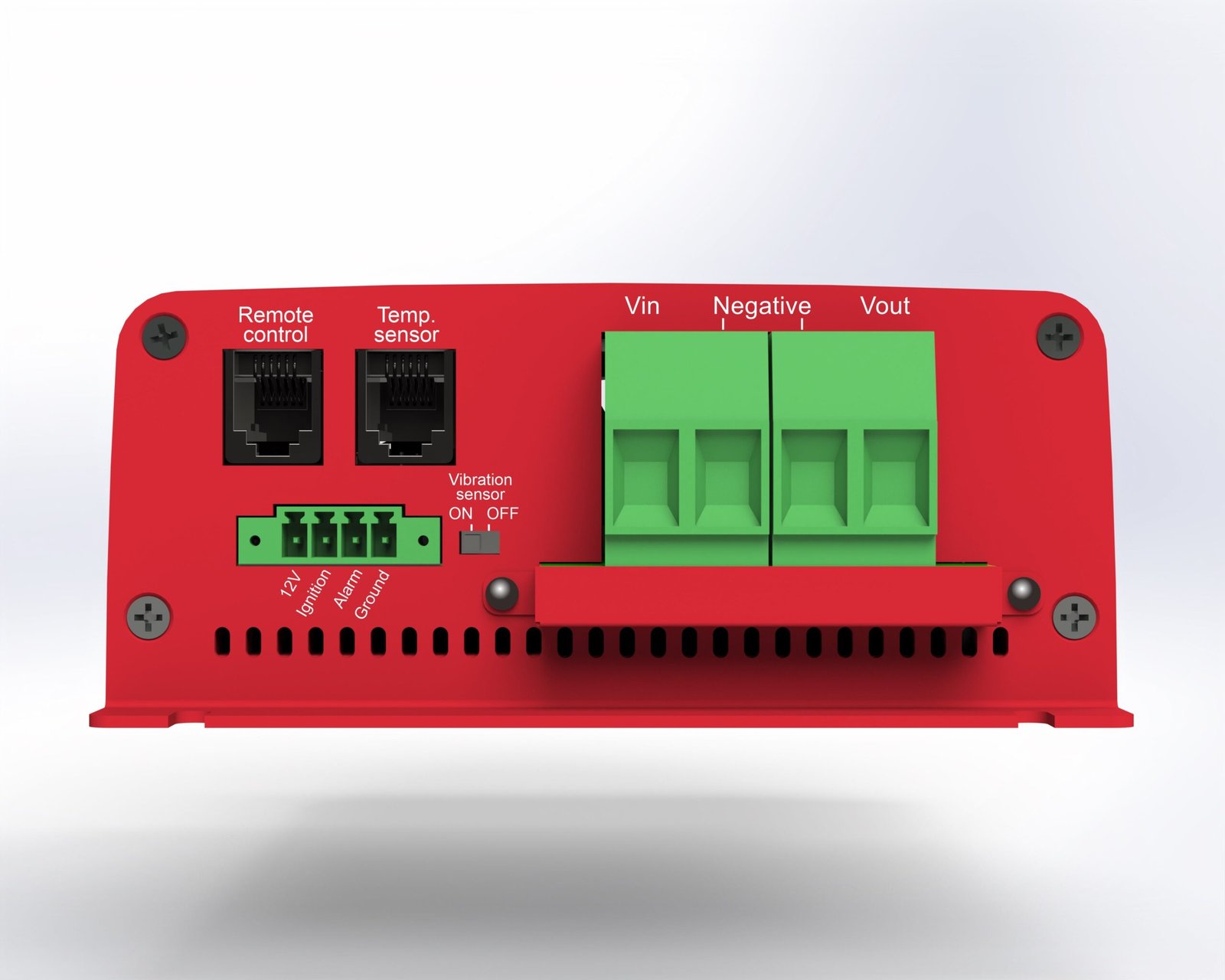

Remote control BBR – Optional remote

– Buck Boost design, offering high efficiency (95-98%)
– Simple installation and setup
– Current limiting charger
– Lithium safe

Instructions / Information pack BB1270

E24 – BB1270 – E-Marking certificate

BB1270
Input voltage range                9V-16V
Continuous Rated output power        64A at 14.51V ~930W
Continuous Rated input power   71.75A at 13.61V ~976W
Quiescent current            5mA
Efficiency rating            95-98%

Self recovering protections:    under voltage protection
                input over voltage protection
                output over voltage protection
                over current protection
                charge over temperature

Operational Temperature        -20 Deg C -> 60 DegC

Approval             CE | UKCA
                E-Marking 24*10R06/01*3789*00
Cooling method            Thermostatically Controlled
                Variable low speed fan

Dimensions            200mm x 130mm x 56mm
Weight                1.0Kg

 Paralleling multiple battery to battery chargers together?

There are no problems installing multiple BBs together in parallel to increase the power. For example, you can parallel a BB1240 with a BB12120 to get 160A of charge current. Likewise, BB1270 w/ BB1240 or BB12120 etc.. it does not matter.

Benefits:

1) Redundancy, having multiple DC-DC chargers can help with reduncancy. If one was to get damaged, the other BB(s) shall continue charging.

2) fine tuning the current. As each BB has 3 different power levels, adding multiple BBs together gives you 6, 9, 12 etc.. different power levels. For example, if you wanted 90A you could get a BB1270 and a BB1240 and set the power levels to 85% each via the BBR remote (to give you approximately 90A). Thus, giving you large levels of flexibily to hone in to a specific charge current.

 Turning off the reverse charging feature, you can! Please watch the video
