500A rated Battery Monitor. Bluetooth Enabled Shunt + Remote
The Battery Monitor (BM2) is AMPS’ high precision power management device, intended for use in the DC negative of your power system. When installed correctly, the device will accurately measure charge, discharge and battery capacity accurately at any given time. The BM2, as a modern battery solution, is suitable for all battery types (Lead acid, Calcium, Lithium etc.) and is able to be read both from a live Bluetooth feed as well as from the remote connected to the unit.
BM2
The Battery Monitor (BM2) is AMPS’ high precision power management device, intended for use in the DC negative of your power system. When installed correctly, the device will accurately measure charge, discharge and battery capacity accurately at any given time.
Bluetooth and Lithium Compatible
The BM2, as a modern battery solution, is suitable for all battery types (Lead acid, Calcium, Lithium etc.) and is able to be read both from a live Bluetooth feed as well as from the remote connected to the unit.
Features and Capabilities
The BM2 monitors your battery bank and DC circuits, giving you accurate information on :
- Remaining battery capacity (measured both as Ampere Hours and as a percentage reading)
- Battery bank voltage (in Volts, of course)
- Current passing the shunt at any given time (in Amperes)
- The App will also provide history and data-logging for your system
Specifications
- Amperage Rating Continuous
- Maximum current monitoring
- BM2 Bolt Size
- Working Voltage Range
- Wattage consumption
- Standby consumption
- Quiescent / Sleep current
- Capacity accuracy
- Voltage accuracy
- Current accuracy
- Capacity Ah setting
- Weight
- Up to 500A
- Up to 999A
- 10mm / M10 - 40mm long
- 8V-80V
- 0.144W (12mA at 12V)
- 0.006W (0.5mA at 12V)
- 0.0006W (50uA at 12V)
- +/-0.5%
- +/-0.5%
- +/-0.5%
- up to 9999Ah | 9999Ah (app)
- 600.0g (Shunt + Remote)
500A | 75mV Shunt

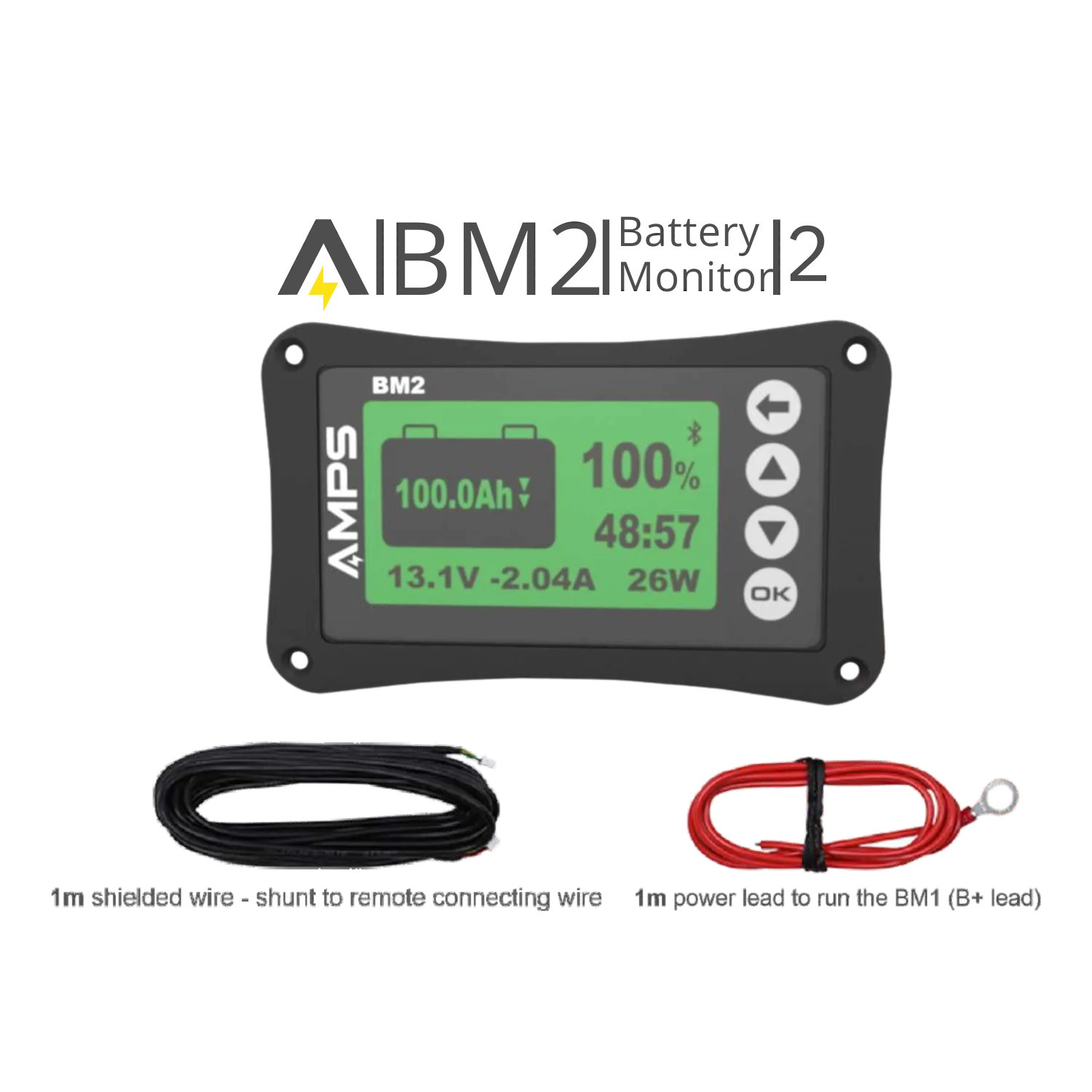

Included Items :
The BM2 comes with :
- 1x Bluetooth compatible remote display

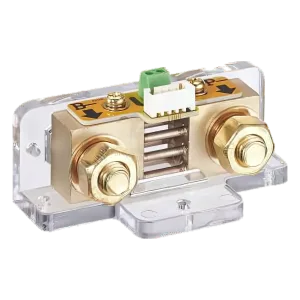

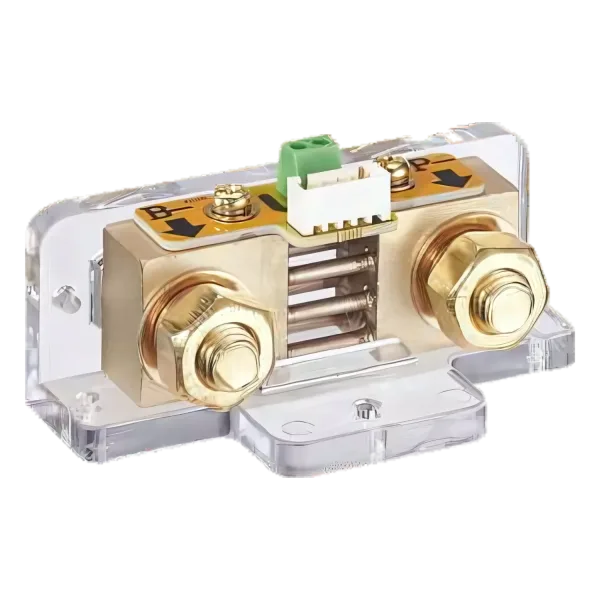

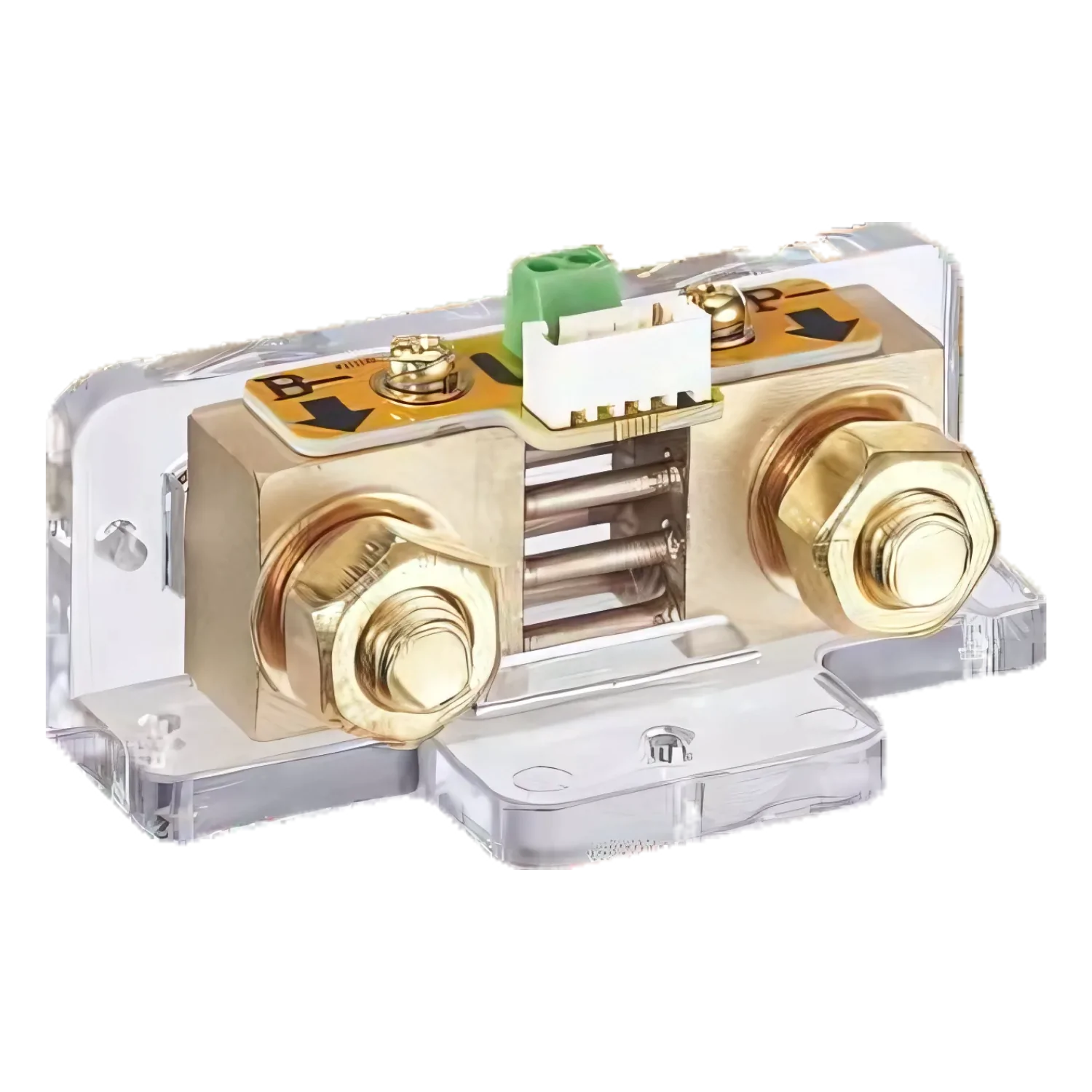

- 1x BM2 shunt (with mounting bracket)

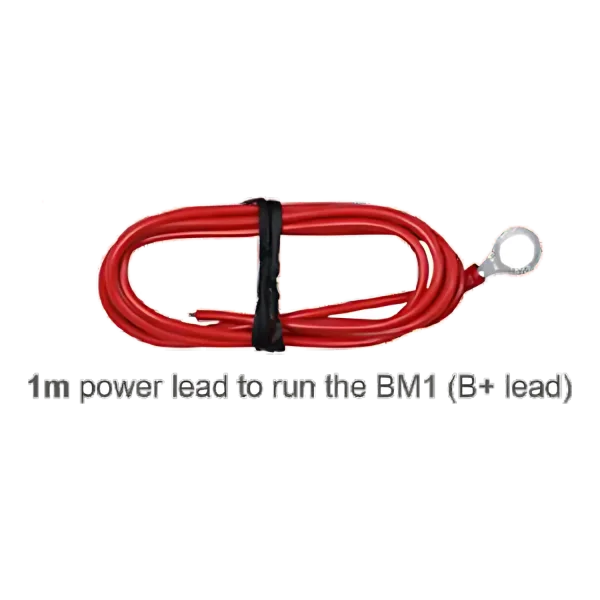

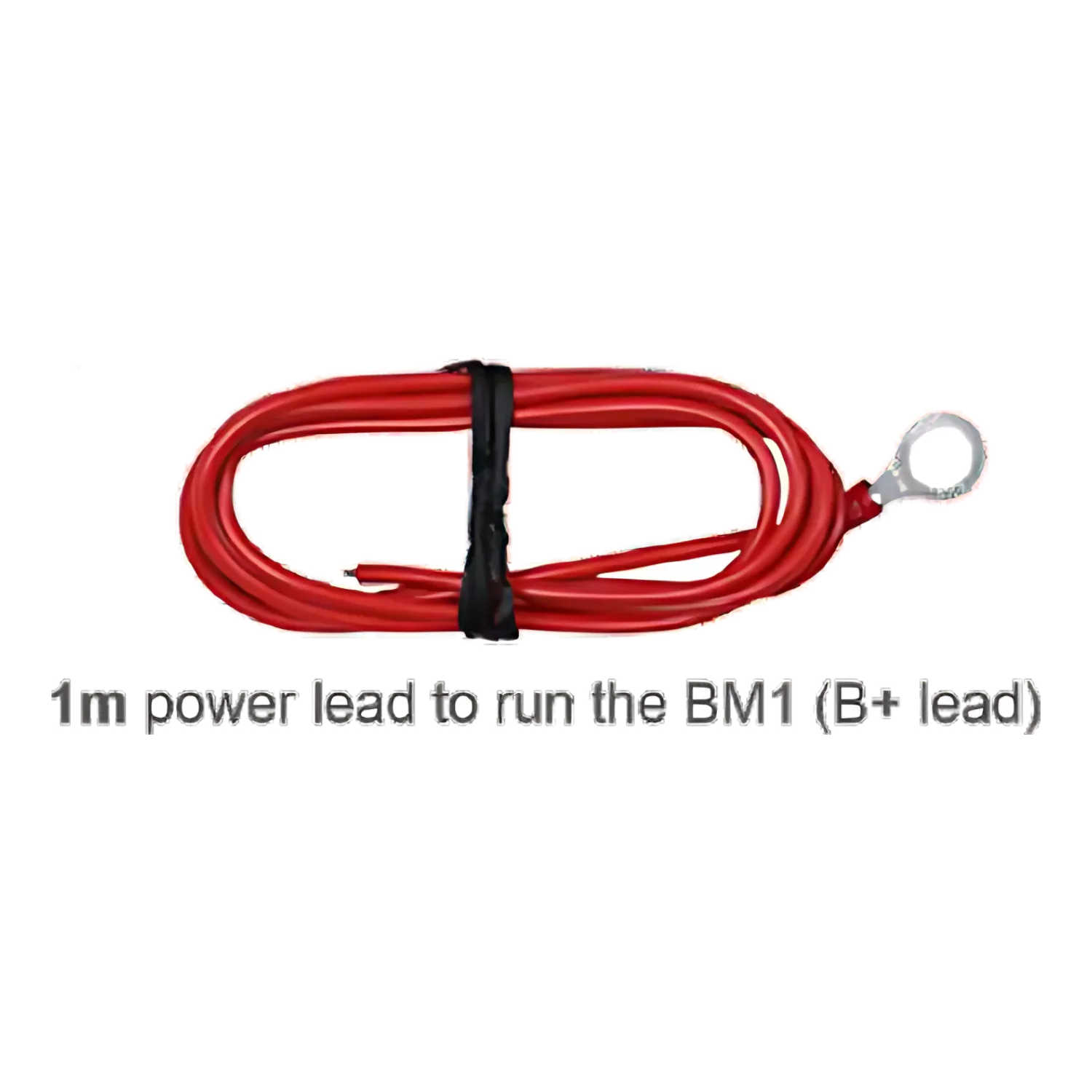

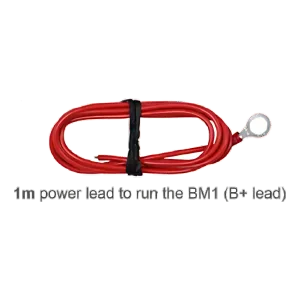

- 1x Shunt power cable (1m)

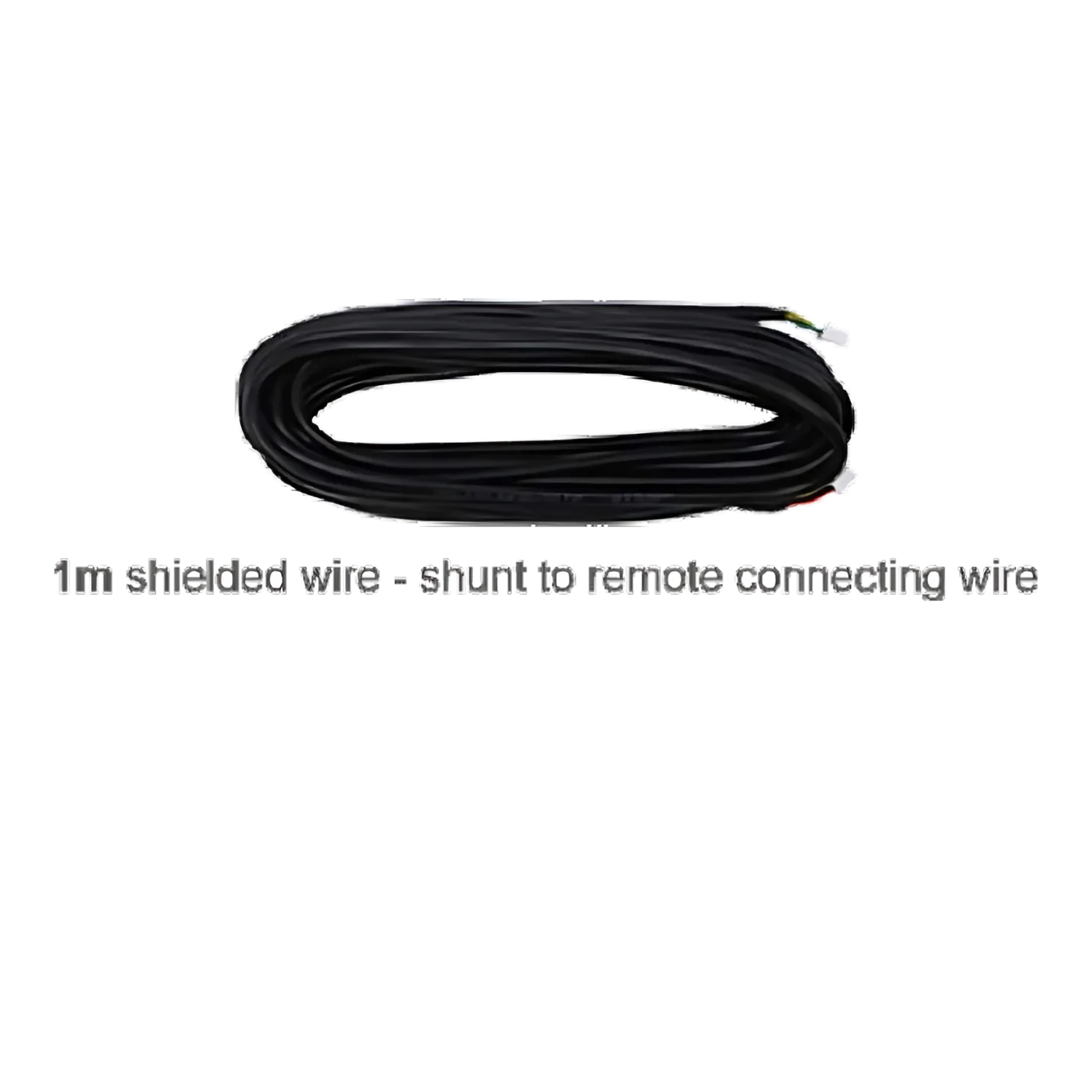

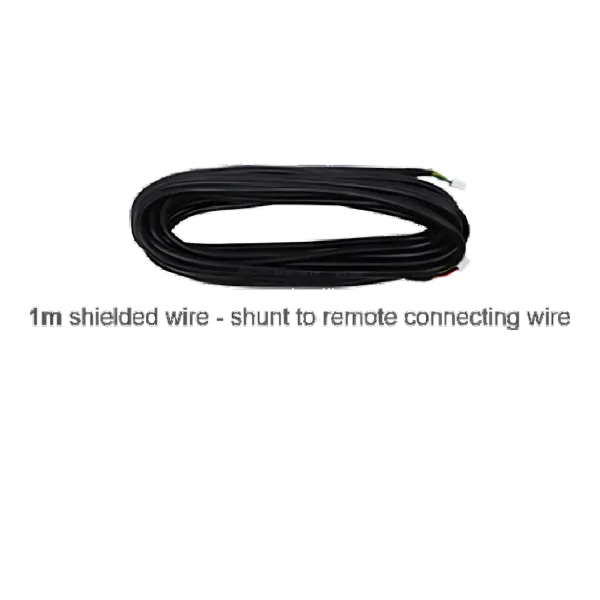

- 1x Remote cable (1m by default, 3m and 6m options available – if shunt and remote are further away that 1m)
Models
| Model | SKU |
|---|---|
|
Battery Monitor 2 w/ 500A 75mV Shunt + bluetooth + 1m of power lead + 1m remote lead |
BM2 |
|
3m – 3 meters of extension cable between remote and shunt |
3M |
|
6m – 6 meters of extension cable between remote and shunt |
6M |
